• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
• Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 7/8”-14 UNF threaded
• Maximum working pressure on front pump: 250 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

• 20/925339 - 20/925579 - 332/F9029

Machine Fitment

• PUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM P/S Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX P/S Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM MANUAL Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800
• PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER MAN Sideshift 9802/9800
• PUMP 36/26 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010

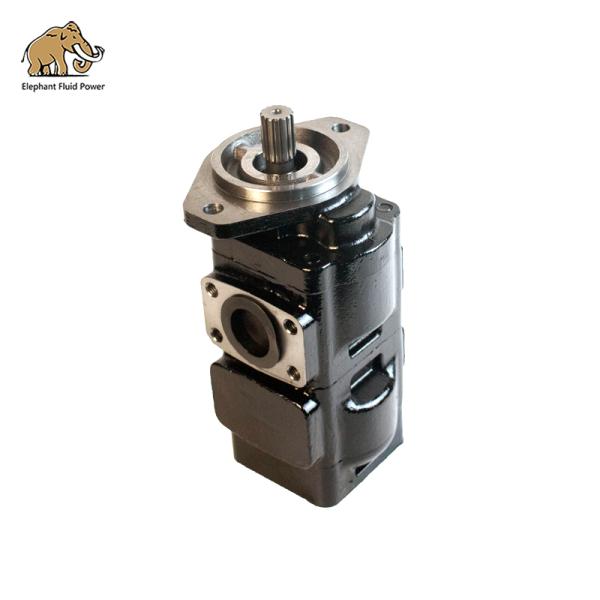

We offer you high-quality hydraulic pumps for JCB construction machines.
Each of the pumps is characterized by reliability and durability.
Machine models: 3CX, 4CX.


Each pump we sell has an individual flow chart under a load of about 150 bar.
The test consists in simulating the conditions in which the pump works on a daily basis (high loads, pressure jumps)
As a result, the customer can be sure that he is installing a proven product that has passed the test.


More JCB pump available as below:

Elephant Fluid Power is a professional manufacturer of hydraulic pump,hydraulic motor and pump parts,we have been exported to more than 80

countries and aereas,is a famous and popular brand in Hydraulic business line.We have become the first choice of your hydraulic line,we will develop together and make more success.

Welcome to your enquiry.
